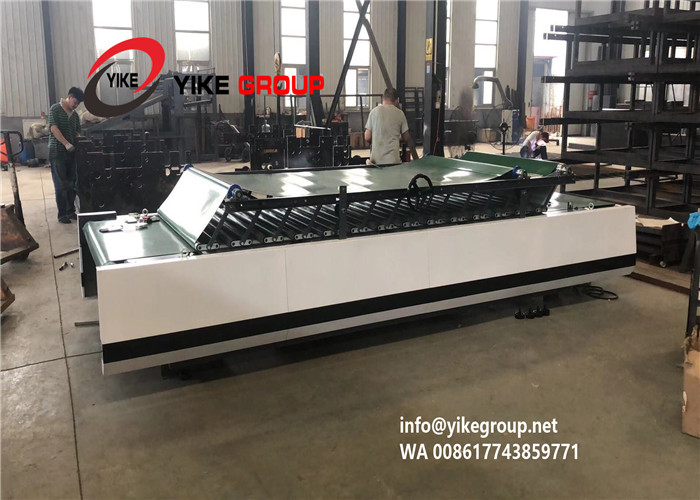

3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine

    Buy cheap 3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine from wholesalers

    Buy cheap 3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine from wholesalers
    • Buy cheap 3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine from wholesalers

    3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine

    Ask Lasest Price
    Brand Name : YIKE GROUP
    Model Number : YK-1300B
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets Flute Laminator Machine Per Month
    Delivery Time : 3 Months For Flute Laminator Machine
    • Product Details
    • Company Profile

    3+2 Ply Automatic Flute Laminator Machine For Corrugated Carton Box Machine


    3+2 Ply Automatic Flute Laminator Machine Used For Corrugated Carton Box Machine

    Introduction

    ● B Type Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.
    ● Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.
    ● Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance.

    Specifications

    ModelYK-1300BYK-1450BYK-1650B
    Max. paper size1300×1100mm1450×1100mm1600×1200
    Min. paper size400×400400×400400×400
    Mini. weight of bottom paper300gsm300gsm300gsm
    Max. weight of bottom paper800gsm800gsm800gsm
    Max. thickness of paper10mm10mm10mm
    Mini. weight of face paper180gsm180gsm250gsm
    Max. weight of face paper800gsm800gsm800gsm
    Precision of paperboard±1.2mm±1.2mm±1.2mm
    Precision of paperboard±1.5mm±1.5mm±1.5mm
    Machine speed100PCS/MIN100 PCS/MIN70 PCS/MIN
    Total power14HP14HP14HP
    Total length12.5M12.5M14.5M
    Total weight6200KG6200KG7500KG
