Single Facer Alloy Steel Corrugated Roller Corrugated Machine Parts

Ask Lasest Price
Brand Name :	YIKE GROUP
Model Number :	YK-280,320,360
Certification :	CE, ISO
Price :	$5,000.00 /set
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	300 sets per Month
Delivery Time :	80 days after deposit

Add to Cart

Product Details
Company Profile

Single Facer Alloy Steel Corrugated Roller Corrugated Machine Parts

Single Facer Alloy Steel Corrugated Roller Corrugated Machine Parts

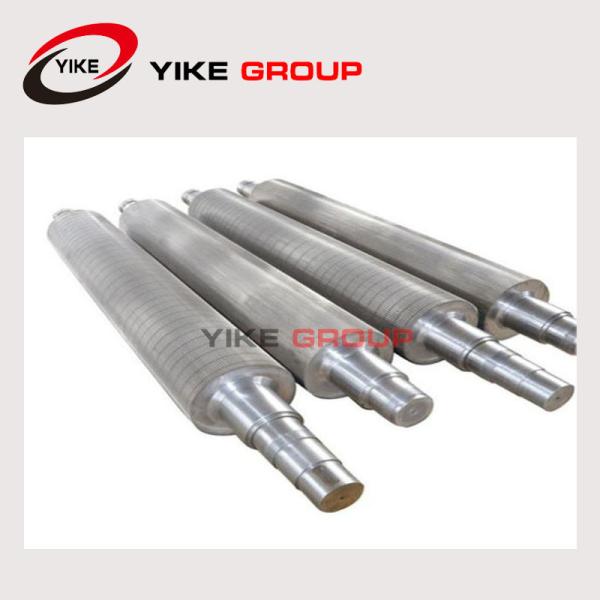

Corrugated Roller

Features:

● High precision hard chrome steel A C B E F G flute corrugated roller

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● The upper and lower corrugated( corrugating, flute) roller for single facer machine

● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser, the hardness is above HRC58o-60o

● The surface is well treated by grind and plated chrome.

● Different types of flute according to user's request.

2. Tungsten Carbide Type Corrugated Roller

● Tungsten Carbide technology is the best surface treatment of Corrugated roll

● With a Tungsten Carbide coat on the surface of the flute, make the corrugated roller with high wearability. The lifetime of Corrugated Roller becomes a Longer lifetime.

● Tungsten Carbide corrugated roller with lower flute height and height of teeth keep for a long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost does not change during whole running life.

Characteristics

Flute	A	C	BC	B	D	E	F	G
Profile	UV	UV	UV	UV	UV	UV	UV	UV
Counts(300mm)	34±2	36±2	44±2	50±2	66±3	96±4	124±10	185±12
Height	4.6-4.9	3.6-3.9	3.0-3.4	2.6-2.9	1.9-2.1	1.1-1.8	0.7-0.8	0.5-0.65
Take Up Rate	1.51-1.59	1.44-1.51	1.42-1.49	1.36-1.42	1.40-1.41	1.29-1.39	1.22-1.26	1.20-1.25
