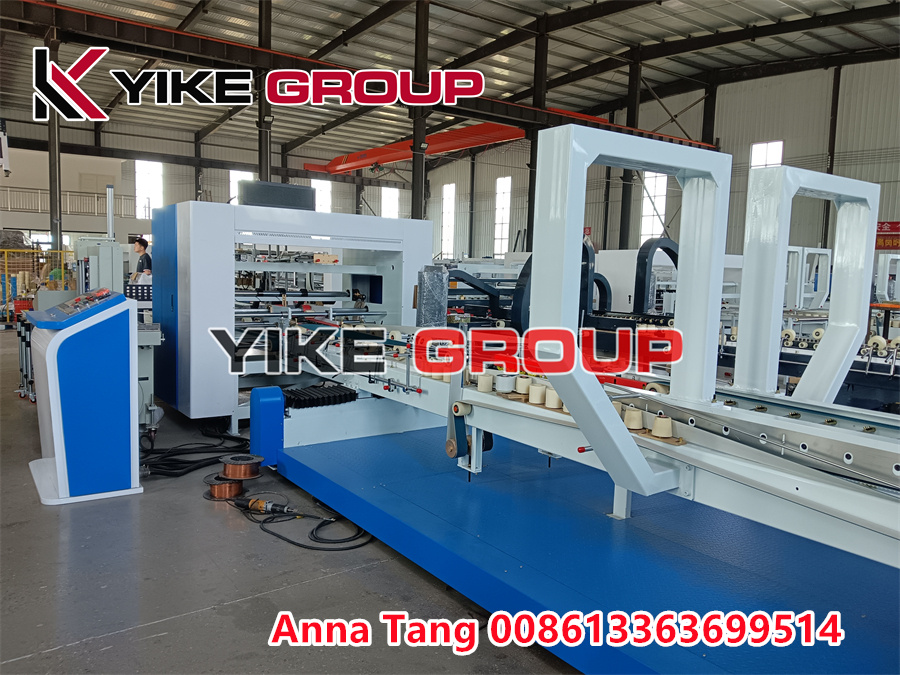

YK-1228 Automatic Folder Gluer Machine To Make Carton Box From YIKE GROUP
| Model | YK-1228 auto folder gluer machine |
| Max. cardboard | 1200*2800mm |
| Mini. cardboard | 170*440mm |
| Diemensions | 13500×3500×1600mm |
| Power required | 12kw |
| Min A | 130 |
| Max A | 750 |
| Min B | 40 |
| Max B | 450 |
| Min H | 170 |
| Max H | 900 |
| Min F | 440 |
| Max F | 2400 |
| Max Speed | 180m/min |
| Voltage | 220V/380V/440V |

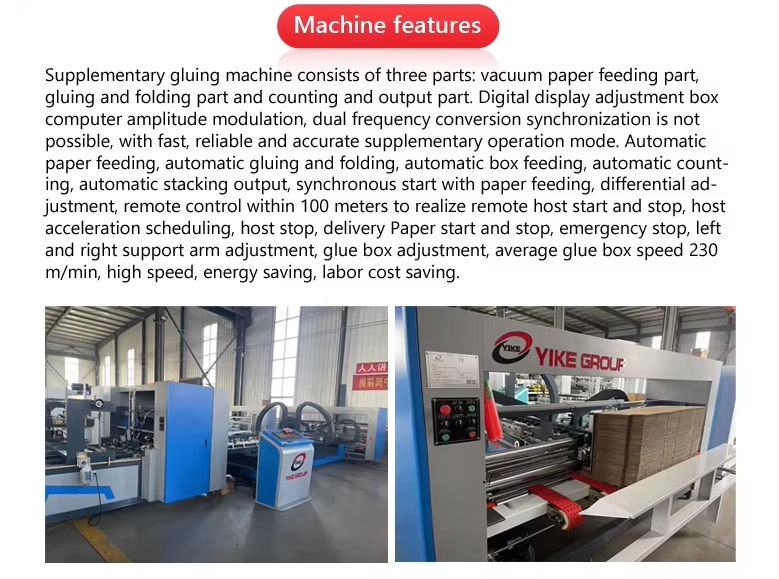

Feeding unit
- The vacuum suction feeding system is good at adapting the curved paperboard
-
- Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.
- The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.
Folding and gluing unit
A 1.The glue quantity is controlled by imported high quality and stability motor, which is low noise
B 2.The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.
C 3.The transmission belt of folding unit is made of imported wear proof rubber belt,
guarantee a long life time and makes the cardboard folding precisely.
4.The re-creasing device is able to re-crease the cardboard to reach a good creasing
if the first creasing is not good.
※ COUNTER AND Stacker unit
A. Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.
B. Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.
C. Count and launch adopts pneumatic method, reliable, accurate and fast.
D. Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful
